2024 marks the 30th anniversary of the 2D code developed by the Japanese firm Denso Wave Inc. The Tokyo Metropolitan Bureau of Transportation (Toei Transportation) has now collaborated with Denso Wave to develop the world’s first 2D-code system for opening and closing platform doors at stations on the Toei Subway Asakusa Line in Tokyo. The two are now offering the technology to other rail operators free of charge.

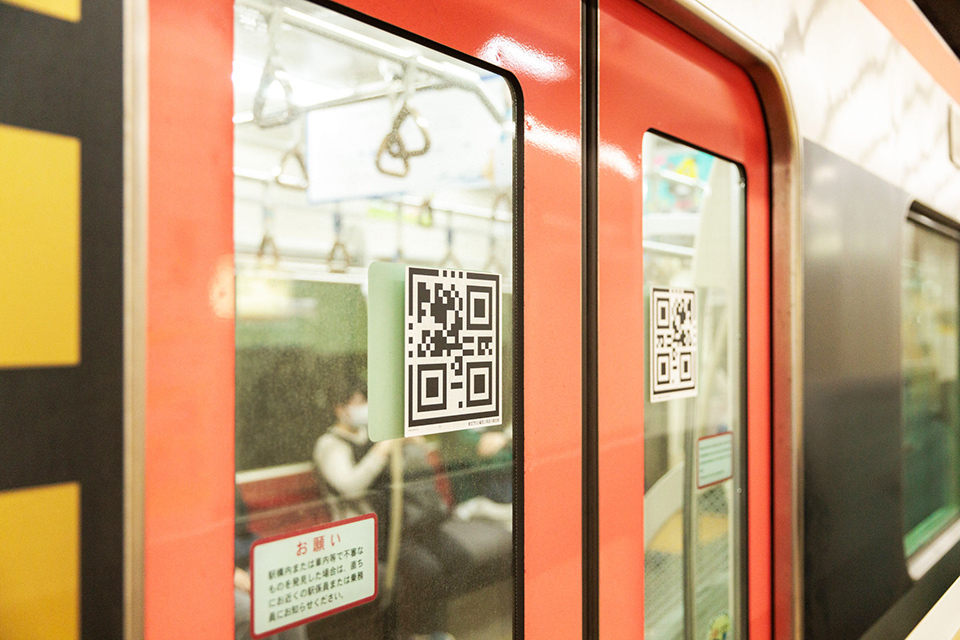

Two closed doors of Toei Subway cars with 2D codes on them.

The special 2D code, or “tQR code,” was developed by Toei Transportation and Denso Wave Inc.

 Platform doors installed at railway stations prevent passengers from falling on or entering the tracks. Transporting on average about 2.2 million people a day on all four of their Tokyo lines, Toei Subway first introduced platform doors on the Mita Line and quickly saw a sharp decrease in the number of platform accidents. Platform doors were subsequently installed on other lines as well. To operate the doors properly, all train carriages require sensors to allow synchronization of the opening and closing of the train and platform doors. Installing sensors across all trains, however, requires a significant amount of money. On the Asakusa Line, which is run by five different railway operators, including Toei Subway, the prohibitive cost of installation caused difficulties in reaching an agreement on implementation of the doors.

 To solve this problem, OKAMOTO Seiji of the Tokyo Metropolitan Bureau of Transportation, who has worked in railways for about 40 years, turned to the two-dimensional QR code, a Denso Wave Inc. registered trademark. “2D codes hold up well against dirt and can carry a lot of data. I thought we could make good use of these codes, so I approached the company and asked if we could work together,” recalls Okamoto. Sensing the social impact of such a move, Denso Wave agreed to the collaboration.
Okamoto Seiji of the Tokyo Metropolitan Bureau of Transportation in a suit poses in front of a white building with a huge rectangular Tokyo banner displayed.

OKAMOTO Seiji, a fellow in the Rolling Stock & Electricity Division of the Bureau of Transportation, Tokyo Metropolitan Government, developed platform doors that use 2D codes. He has been involved in platform-door planning and design for more than 20 years.

 What was developed after much trial and error was the world’s first system that uses multiple cameras installed at the top of the station platform to capture the 2D codes applied to the glass of the train doors, thereby automatically opening and closing the platform doors.

 The 2D codes contain such information as the number of train cars and total number of doors. The cameras read this information and the movement of the codes. For example, by reading the codes, the cameras can recognize whether the train is moving or stationary, and whether the train door is open or closed. The platform doors can then be opened or closed accordingly. Numerous experiments were carried out during the development stage. These included adjusting the way the cameras and codes were set up so they could be read even in an outdoor environment, such as when wet with rain or reflecting sunlight. “Even if up to half of the code cannot be read, it will not hinder the system’s operation,” asserts Okamoto.

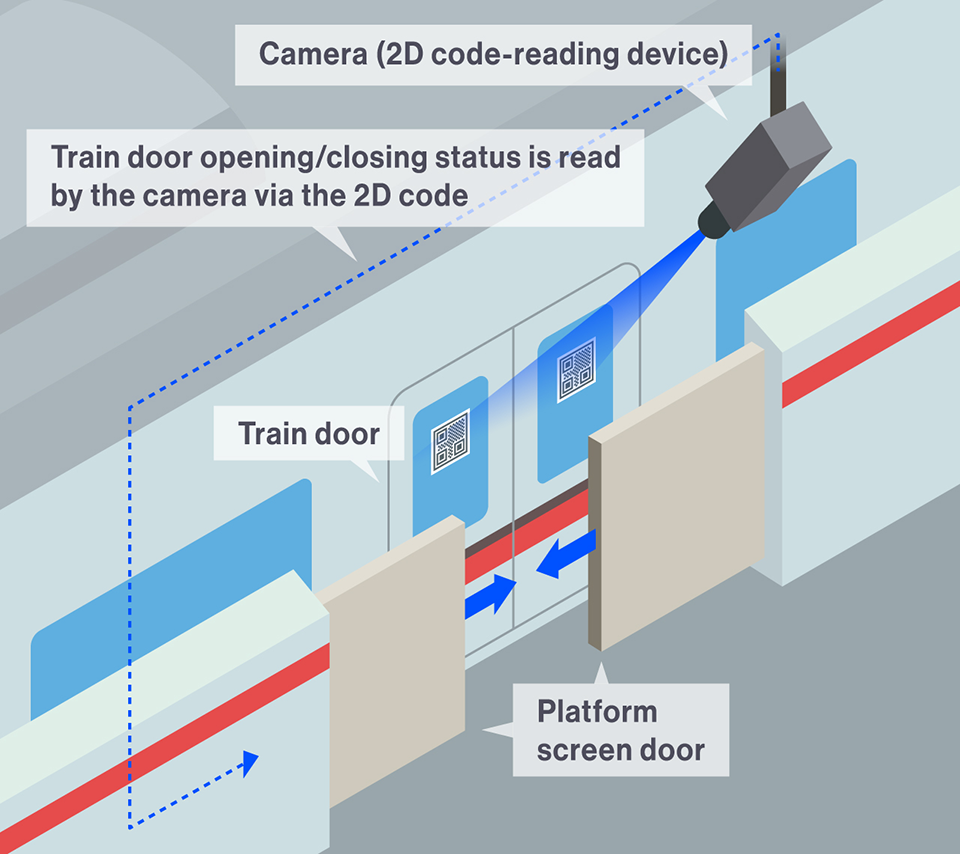

A diagram of a station platform with a train car. A camera is mounted on the ceiling, facing 2D codes on the train doors.

A camera reads the data and movement of 2D codes attached to both train doors, signalling the opening and closing of the platform door.

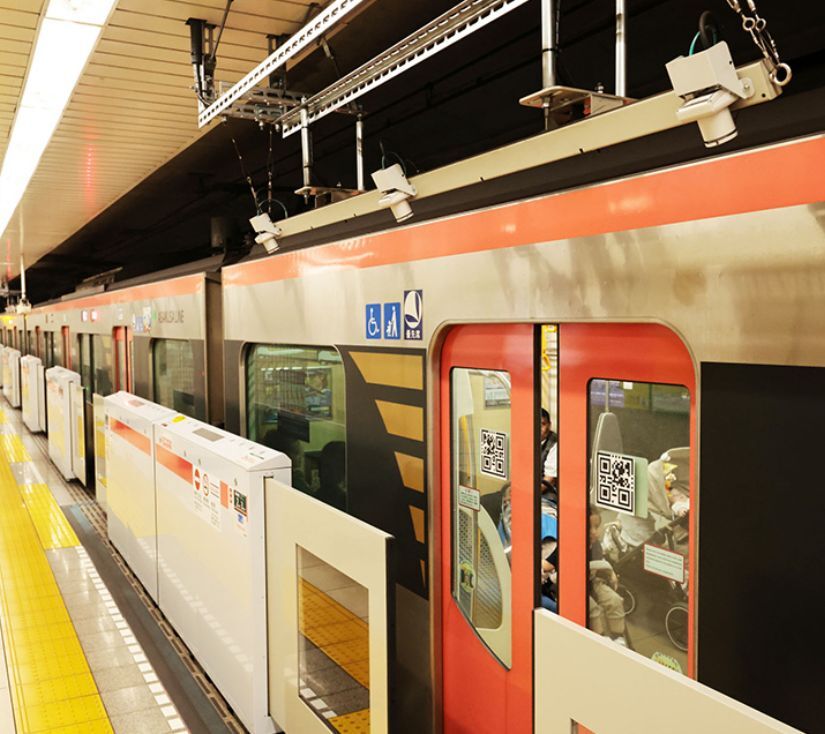

A Toei Subway Station in Tokyo. Red and silver train cars with red doors sit at the platform, ready for boarding.

The camera seen in the upper right of the photo reads information from 2D codes, such as the number of train cars and the position of the doors.

 The benefits brought about by the development of this system are immeasurable. The cost of refurbishing the train cars, originally estimated to be about 2 billion yen alone for the trains managed by the Bureau of Transportation was reduced to about 2.7 million yen. Not only have costs been reduced, but as a result of installing the platform doors, the number of passenger accidents at all Toei Subway stations has also drastically decreased from 70 in fiscal 2011 to just two in fiscal 2022. With platform-door construction on the last station of the Asakusa Line completed in February 2024, all 106 Toei Subway stations now have them installed. Okamoto says, “I’ve heard that for the visually impaired, walking on a station platform is like walking on a bridge without railings. In developing this system, we focused on safety above all else.”
 Toei Transportation and Denso Wave share the same passion inherent to Japanese manufacturing, namely a desire to deliver safe, quality products far and wide. Although the two companies have obtained a joint patent, they are providing this technology without charging royalties. In response, other railway operators are also using this technology to install platform doors.
 “I’m sure the technology will be useful for railway operators around the world, given that they may have been hesitating about installing platform doors for some reason or other,” says Okamoto. No doubt both Toei Transportation and Denso Wave will respond effectively to any interest from overseas.
